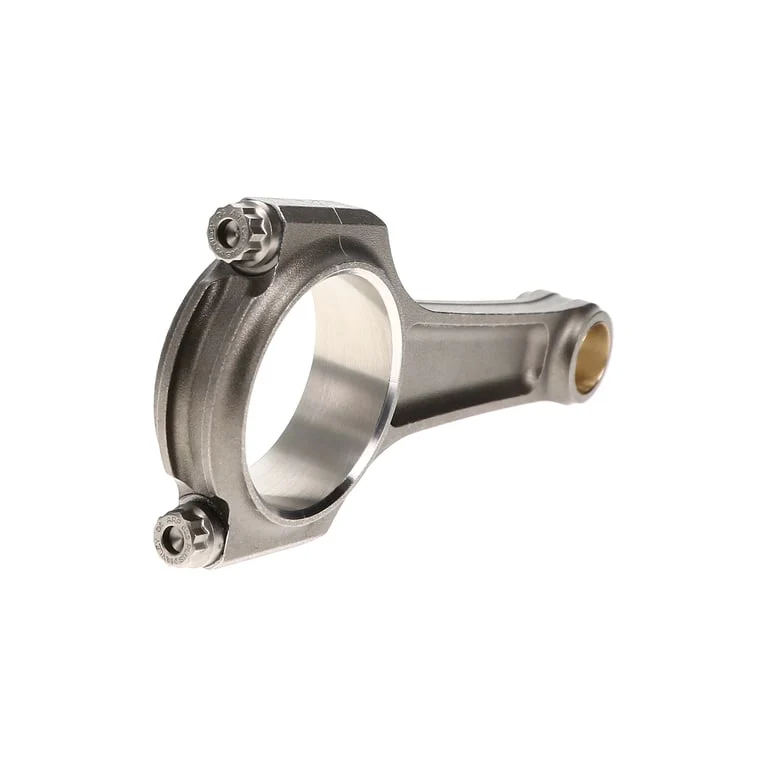

Manley Turbo Tuff® Series I-Beam Connecting Rod Set – Nissan VK56

Center To Center Length: 6.081 in. – Big End Bore: 2.2443 in. – Pin Bore: 0.8671 in. (22mm pin) – 3/8″ ARP 2000 Bolts – Approx. HP Rating: 1700+

Manley’s Turbo Tuff® I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your Tokyote’s capabilities and achieve outstanding results with these exceptional connecting rods.

• Experience the pinnacle of connecting rod technology with our Turbo Tuff® rods, designed for ultimate performance
• Superior Materials: These rods are forged 4340 vacuum degassed steel alloy, engineered for unparalleled performance and durability
• Shot peened after machining to MIL spec and 100% individually magnafluxed
• Specifically designed to handle high horsepower applications when using power adders
• Flywheel horsepower range: 4 cylinder – 1000+ / 6 cylinder – 1250+ / 8 cylinder – 1700+
• Minimal block clearance needed

Product Market	Sport Compact
Big End Bore	2.2443 IN
Center To Center Length	6.081 IN
Emissions Code	3
Journal Size	Stock
Length	Stock
Pin End Bore	0.8671 IN
Wrist Pin Diameter	22 MM
Connecting Rod Series	Pro Series I-Beam
Connecting Rod Sub-Series	Turbo Tuff®
Product Type	Engine Connecting Rod Set
Rod Quantity	8
Connecting Rod Type	I-Beam
Connecting Rod Material	4340
